XBC series diesel engine fire emergency pump set, this series of equipment can be divided into XBC-IS, XBC-SLOW, XBC-IS, XBC-SLOW, XBC-S The three sub-series D, etc., have a wide range of equipment pressure and flow, and their applications can almost meet various occasions required for fire fighting.



The equipment has the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation.



Conditions for normal operation of the equipment:

Altitude ≤1000m; Ambient temperature: +5℃~+40℃;

Relative air humidity: ≤90%.



Application scope:

The equipment is suitable for fire-fighting water supply in warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, tankers and other occasions.



Structural features and function description:

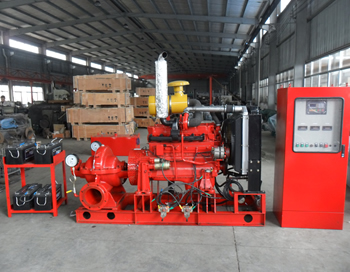

The equipment is powered by X6135, 12V135, 4102, 6102 and other series of diesel engines. The diesel engine (with clutch) is connected to the fire pump through a highly flexible coupling to form a fire pump unit. The unit also includes a diesel tank, a cooling water tank, a fan, and a control unit. Screen (for automatic unit) and other components.



When it is an automatic control unit, the split diesel engine automatic control cabinet (programmable) realizes the system's automatic removal, commissioning, and automatic switching (the electric pump group is switched to the diesel engine pump group or the diesel engine pump group is switched to another A set of diesel engine pump sets), automatic protection (diesel engine overspeed, low oil pressure, high hydrology, three start failures, low oil level, low battery voltage, etc. alarm shutdown protection) and other functions. At the same time, it can also communicate with the user's fire control center or automatic fire alarm Device interface to realize remote monitoring.

In order to ensure the normal operation of the unit in an environment lower than 5℃, the unit can be attached with an AC220V cooling water preheating device.

The diesel engine fire-fighting jumper can form an automatic fire-fighting water supply system with electric pumps, stabilized pumps, etc. See the introduction of "Diesel Engine Control System" for its working process. The equipment can realize joint control with the fire center.



The fire pump has two water inlet methods: self-priming and suction. According to the requirements of fire protection regulations, it is generally self-priming and water diversion. If the user needs to suck up the water inlet system, special instructions are required so that the company can provide an automatic vacuum water diversion device, but the size of the pump unit has been changed.
