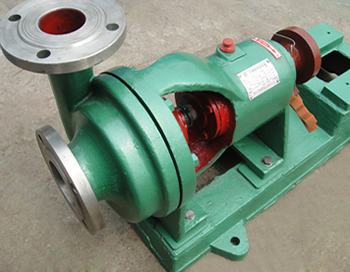

FB type stainless steel centrifugal pump

The main purpose of the corrosion-resistant centrifugal pump: the pump is widely used in chemical, petroleum, metallurgy, light industry, synthetic fiber, environmental protection, food, medicine and other sectors. This type of product has the advantages of stable and reliable performance, good sealing performance, beautiful appearance, convenient use and maintenance, etc. In order to improve product quality, reduce running, spilling, dripping and leakage, and prevent pollution, it plays a great role.

details:

FB type stainless steel corrosion-resistant pump is suitable for the medium that does not contain solid particles, the medium temperature is 0℃～120℃, and the inlet pressure is not more than 2kg/cm2. The AFB stainless steel corrosion-resistant centrifugal pump is an improved design on the basis of the F-type corrosion-resistant pump. It adopts a new type of impeller power shaft sealing device and is a single-stage single-suction cantilever type corrosion-resistant centrifugal pump. The flow part of the pump in contact with the conveying medium is made of 1Cr18Ni9Ti material. It is used to transport corrosive liquid without solid particles, the temperature of the medium being transported is -20℃～130℃, and the inlet pressure of the pump is not more than 2kg/cm2.

Performance parameter table:

型号	流量Q		扬程H	转速n	效率(%)	轴功率	配用功率 (Kw)
型号	(m 3 /h)	(L/s)	(m)	(r/min)	效率(%)	(Kw)	配用功率 (Kw)
25FB-16	3.6	1	16	2900	33	0.48	1.1
25FB-16A	3.27	0.91	12.5	2900	34	0.34	0.75
25FB-25	3.6	1	25	2900	30	0.82	1.5
25FB-25A	3.27	0.91	40	2900	31	0.57	1.1
25FB-40	3.6	1	40	2900	23	1.71	3
25FB-40	3.27	0.91	33.5	2900	24	1.21	2.2
40FB-16	7.2	2	16	2900	44	0.71	1.5
40FB-16A	6.55	1.82	12	2900	46.7	0.5	1.1
40FB-20	7.2	2	20	2900	42	0.93	1.5
40FB-25	7.2	2	25	2900	39	1.26	2.2
40FB-25A	6.55	1.82	20.5	2900	40	0.94	1.5
40FB-40	7.2	2	40	2900	32	2.45	3
40FB-40A	6.55	1.82	32	2900	33.5	1.73	2.2
40FB-63	7.2	2	63	2900	27	5.42	7.5
40FB-63A	6.72	1.87	56	2900	29	3.75	5.5
50FB-16	14.4	4	16	2900	56	1.09	2.2
50FB-16A	13.1	3.64	12	2900	57	0.81	1.5
50FB-25	14.4	4	25	2900	52	1.83	4
50FB-25A	13.1	3.64	20	2900	51.5	1.42	3
50FB-40	14.4	4	40	2900	46	3.32	5.5
50FB-40A	13.1	3.64	32.5	2900	45	2.62	5.5
50FB-63	14.4	4	63	2900	39	6.16	11
50FB-63A	13.1	3.64	54.5	2900	38	5.24	7.5
65FB-25	28.8	8	25	2900	62	3.16	5.5
65FB-25A	26.2	7.28	20	2900	62	2.36	4
65FB-30	28.8	8	30	2900	60.5	3.89	7.5
65FB-30A	26.2	7.28	25	2900	61	2.79	5.5
65FB-40	28.8	8	40	2900	57.5	5.46	11.5
65FB-40A	26.2	7.28	32	2900	58	4	7.5
65FB-64	28.8	8	64	2900	52.5	9.57	15
65FB-64A	26.2	7.28	55	2900	51.5	7.82	7.5
80FB-15	54.4	15	15	2900	69	3.2	5.5
80FB-15A	49.1	13.65	11.5	2900	69	2.62	4
80FB-24	54.4	15	24	2900	68	5.19	7.5
80FB-24A	49.1	13.65	19	2900	68	3.94	7.5
80FB-38	54.4	15	38	2900	66.5	8.41	15
80FB-38A	49.1	13.65	30.5	2900	66.5	6.34	11
80FB-60	54.4	15	60	2900	62.8	14.06	22
80FB-60A	49.1	13.65	52	2900	62.5	11.56	18.5
100FB-23	100.8	28	23	2900	73	8.65	15
100FB-23A	91.8	25.5	17.5	2900	73	6.51	11
100FB-37	100.8	28	37	2900	73	13.9	22
100FB-37A	91.8	25.5	29	2900	70.5	11	18.5
100FB-57	100.8	28	57	2900	70.5	22.2	37
100FB-57A	91.8	25.5	52	2900	70.5	18.77	37
150FB-22	190.8	53	22	2900	77	14.86	22
150FB-22A	173.5	48.2	17.5	2900	78	10.6	18.5
150FB-35	190.8	53	35	2900	76	13.94	37
150FB-35A	173.5	48.2	28	2900	76	17.42	30
150FB-56	190.8	53	56	2900	76	38.3	55
150FB-56A	173.5	48.2	50	2900	76	32.1	37
