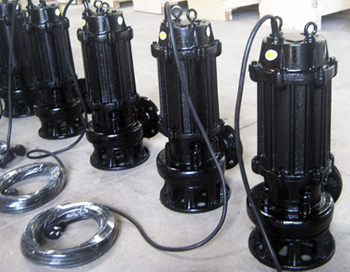

WQ/QW series high-speed submersible sewage pump

WQ/QW series high-speed submersible sewage pumps are used in municipal engineering, factories, hospitals, farmland irrigation, aquaculture, fountains, construction sites, hotels, restaurants and other industries

Purpose:

WQ/QW series high-speed submersible sewage pumps are mainly used in municipal engineering, factories, hospitals, farmland irrigation, aquaculture, fountains, construction sites, hotels, restaurants and other industries

Discharge wastewater containing solid particles and urban domestic sewage.

Performance range:

Speed: 2840r/min

Caliber: 40~100mm

Flow rate: 10~100m3/h

Head: 5~28m

Power: 1.1~7.5kw

Cooling method: external medium cooling.

Low water level for pumping capacity: Allow half of the submersible motors to emerge from the water.

Features:

◆Reasonable design, anti-clogging, strong winding ability and reliable use.

◆Easy installation and use: movable installation and automatic coupling installation, easy installation and maintenance.

◆High reliability: The submersible pump is equipped with a control cabinet and has the functions of water leakage detection, overheating, and overload protection.

◆Convenient control: The control cabinet is fully automatic control, protection and signal output, which is conducive to centralized control.

◆The configuration of the float switch can automatically control the stop and start of the pump according to the required water level change, without special supervision.

Performance parameter table:

型号	口径 mm	流量 m3/h	扬程 m	功率 KW	转速 r/min	效率 %
25-8-22-1.1	25	8	22	1.1	2825	38.5
32-12-15-1.1	32	12	15	1.1	2825	40
40-15-15-1.5	40	15	15	1.5	2840	45.1
40-15-30-2.2	40	15	30	2.2	2840	48
50-20-7-0.75	50	20	7	0.75	1390	54
50-10-10-0.75	50	10	10	0.75	1390	56
50-20-15-1.5	50	20	15	1.5	2840	55
50-15-25-2.2	50	15	25	2.2	2840	56
50-18-30-3	50	18	30	3	2880	58
50-25-32-5.5	50	25	32	5.5	2900	53
50-20-40-7.5	50	20	40	7.5	2900	55
65-25-15-2.2	65	25	15	2.2	2840	52
65-37-13-3	65	37	13	3	2880	55
65-25-30-4	65	25	30	4	2890	58
65-30-40-7.5	65	30	40	7.5	2900	56
65-35-50-11	65	35	50	11	2930	60
65-35-60-15	65	35	60	15	2930	63
80-40-7-2.2	80	40	7	2.2	1420	52
80-43-13-3	80	43	13	3	2880	50
80-40-15-4	80	40	15	4	2890	57
80-65-25-7.5	80	65	25	7.5	2900	56
100-80-10-4	100	80	10	4	1440	62
100-110-10-5.5	100	110	10	5.5	1440	66
100-100-15-7.5	100	100	15	7.5	1440	67
100-85-20-7.5	100	85	20	7.5	1440	68
100-100-25-11	100	100	25	11	1460	65
100-100-30-15	100	100	30	15	1460	66
100-100-35-18.5	100	100	35	18.5	1470	65
125-130-15-11	125	130	15	11	1460	62
125-130-20-15	125	130	20	15	1460	63
150-145-9-7.5	150	145	9	7.5	1440	63
150-180-15-15	150	180	15	15	1460	65
150-180-20-18.5	150	180	20	18.5	1470	75
15-180-25-22	150	180	25	22	1470	76
150-130-30-22	150	130	30	22	1470	75
150-180-30-30	150	180	30	30	1470	73
150-200-30-37	150	200	30	37	1480	70
200-300-7-11	200	300	7	11	970	73
200-250-11-15	200	250	11	15, , ,	970	74
200-400-10-22	200	400	10	22	1470	76
200-400-13-30	200	400	13	30	1470	73
200-250-15-18.5	200	250	15	18.5	1470	72
200-300-15-22	200	300	15	22	1470	73
200-250-22-30	200	250	22	30	1470	71
200-350-25-37	200	350	25	37	1980	75
200-400-30-45	200	400	30	45	1480	70
250-600-9-30	250	600	9	30	980	74
250-600-12-37	250	600	12	37	1480	78
250-600-15-45	250	600	15	45	1480	75
250-600-20-55	250	600	20	55	1480	73
250-600-25-75	250	600	25	75	1480	73
250-800-12-45	250	800	12	45	980	76
300-500-15-45	300	500	15	45	980	70
300-800-15-55	300	800	15	55	980	73
300-600-20-55	300	600	20	55	980	75
300-800-20-75	300	800	20	75	980	78
300-950-20-90	300	950	20	90	980	80
300-1000-25-110	300	1000	25	110	980	82
350-1100-10-55	350	1100	10	55	980	84.5
350-1500-15-90	350	1500	15	90	980	82.5
350-1200-18-90	350	1200	18	90	980	83.1
350-1100-28-132	350	1100	28	132	740	83.2
350-1000-36-160	350	1000	36	160	740	78.5
350-1500-10-75	400	1500	10	75	980	82.1
400-2000-15-132	400	2000	15	132	740	85.5
400-1700-22-160	400	1700	22	160	740	82.1
400-1500-26-160	400	1500	26	160	740	83.5
400-1700-30-200	400	1700	30	200	740	83.5
400-1800-32-250	400	1800	32	250	740	82.1
